HYDRAULICS & PNEUMATICS

Click on images to enlarge

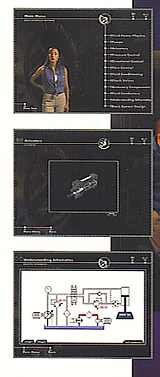

BASIC HYDRAULICS INTERACTIVE CDROM



The Basic Hydraulics Training course on CD-ROM gives you a through education in essential Hydraulics. This is an interactive program that gives you the hands on skill and knowledge you need to tackle hydraulics in the real world.



A complete Course



Upon completion you will have a thorough theoretical and practical knowledge in the following vitally important areas, each one a complete unit:



  • Fluid Power Physics

  • Actuators

  • Pressure Control

  • Directional control

  • Flow Control

  • Fluid Conditioning

  • Check Valves

  • Accessory components

  • Fluid Conductors

  • Schematics

  • Basic System Design



This US original program has been developed by the NFPA whose members include companies like Festo – Bosh  Rexroth – Parker Hanifin, etc. The part on Fluid Power Physics should be disregarded if the use of imperial units is problematic.



All components operation is simulated and explained. Each unit has its own test.



Complete with workbook

Order HYD NPFA



HYDRAULICS - BASIC TO ADVANCED



As good or better as the other leading brand.

Bench available in various configurations



EDUCATIONAL



INTRODUCTORY

Control of a single act cylinder

Control of a double acting cylinder

Mid position stop control

Pressure compensation



INTERMEDIATE

Automatic Lathe

Package lift

Drawing press

Calendaring

Hardening

Door control

Conveyor tensioning

Rotary Machining

Painting booth

Embossing

Drilling



ADVANCED

Reeling

Grinding

Lifting

Drilling

Press

Clamping

Bending

Folding

Drill

Machining













PNEUMATICS - BASIC TO ADVANCED



Educational content:



INTRODUCTORY:

Control of a single acting cylinder

Control of a double acting cylinder

Flow Control

Control of a single acting cylinder with logic valve

Automatic control of a double acting cylinder

Time delay

Sequence control



INTERMEDIATE:

10 Applications  controlling  with one cylinder

3 applications with parallel motion

2 applications with two actuators



ADVANCED

Applications:

Door control

Lifting

Transferring of billets

Drilling

Filling

Feeding

Feed unit

Packing

Sealing

Hardening

Bending

Cleaning

Grinding

Stacking

Sorting



Double sided “A” frame for table top PF 5002

Bench with single sided work area   PF 5003

Bench with double sided work area  PF 5004

Standard with one set of drawers per side

extra cabinet on request



You don’t need anything else – No optionals – no accessories – nothing!



CUTAWAY PNEUMATIC COMPONENTS



General

Scratchproof panel on which a selection of industrial grade pneumatic components are mounted for didactic purposes. Each item is carefully sectioned and painted to perfectly show the mechanism and its operation.  The panel is equipped with a small frontal table on which the student can place his own working component to visualize its internal configuration.



The following components are provided:



  • OR Gate

  • AND Gate

  • Roller Level Valve

  • Pneumatic Valve

  • Flow Control Valve

  • Quick exhaust valve

  • Time Delay valve

  • Pressure Gauge

  • Filter Regulator

  • Valve Module

  • Double Acting Cylinder

  • Single Acting Cylinder



Order: Pneumatic Models PM001



CUTAWAY PUMPS ETC.



PERT Industrials Hydraulics Pneumatics Basic Hydraulics Interactive CDROM


PERT Industrials Hydraulics Pneumatics Basic Hydraulics Interactive CDROM
PERT Industrials Hydraulics Pneumatics Basic Hydraulics Interactive CDROM

PERT Industrials Hydraulics Pneumatics Basic to Hydraulics
PERT Industrials Hydraulics Pneumatics Basic Intermediate
PERT Industrials Hydraulics Pneumatics Hydraulics Advanced
PERT Industrials Hydraulics Pneumatics Advanced
PERT Industrials Hydraulics Pneumatics Pneumatics Basics to Intermediate
PERT Industrials Hydraulics Pneumatics Basic to Advanced Pneumatics
PERT Industrials Hydraulics Pneumatics Cutaway Pneumatic Components

CUTAWAY VALVES








HYDRAULICS SIMULATION SOFTWARE



Circuit Design and simulation program for

Electric, Pneumatic, Hydraulic and Digital Electronics.



This program can only be appreciated by trying it - To view this and to receive a free evaluation copy, contact Pert







































HYDRAULICS TROUBLESHOOTING



The "Troubleshooting Hydraulic Systems" training program is an intensive 32 hour course on fluid dynamic principles designed to teach you how to understand and troubleshoot hydraulic system failures. All maintenance repair persons should have an understanding of hydraulic fundamentals as well as basic circuit operation. Understanding hydraulic system operation is mandatory for all industrial maintenance technicians. This training is vital for the efficient repair of any electric over hydraulic machinery. Your people need this training if your facility has machinery utilizing hydraulic components



HYD Training Part 1:

      Training segment 1 begins with the basics of fluid dynamics. Your students, or employees will learn how power can be transmitted through fluid. Part 1 then continues into an examination of 2 way valves, 3 way valves, check valves and pressure relief valves. They will see how these devices actually function and how they are implemented in an actual circuit design. Prior experience or training is not a requirement for this training program. However, those with prior experience or training will gain a deeper understanding of hydraulic system operation.



HYD Training Part 2:

      In part 2, your students will examine linear and rotary actuators. Double action, double rod, ram, telescoping, tandem and duplex cylinder operations are all covered in this easy to learn training DVD. Rotary devices like rack-and-pinion, rotary vane and rotary cylinder actuators are also illustrated in detail. In four short hours your students will learn more than most people learn in a week.



HYD Training Part 3:

      In the third training session your employees, or students will examine common hydraulic pumps like the balanced vane, unbalanced vane, gear, axial piston and radial piston hydraulic pump configurations. Part 3 also covers different types of filters and the purpose for using a reservoir.



HYD Training Part 4:

      Part 4 provides an in depth examination of hydraulic motors, accumulators and intensifiers. Your students will learn the differences between spring loaded, various gas charged and weight loaded accumulator devices. Safety dump circuits for the accumulator are also covered in this portion of your hydraulic training.



HYD Training Part 5:

      During this training session your students will examine flow control and pressure sensitive devices in greater detail. They will also learn about air cooled and water cooled heat exchangers. Testing the heat exchanger for internal leaks is also covered in part 5.



HYD Training Part 6:

      Part 6 concentrates on hydraulic servo valve operation. Single spool, master-slave and proportional valves are all covered in this training segment. The purpose of the LVDT is also discussed in part 6. This training segment provides a very good understanding of hydraulic servo valve operation



HYD Training Part 7:

      Training session 7 begins to apply all the knowledge your students have gained in the first 6 training sessions by illustrating hydraulic prints with the valves shifting position, cylinders extending and retracting, pressure relief valves operating, flow controls restricting flow and check valves opening and closing under pressure. Learning to read a hydraulic print has never been easier.



HYD Training Part 8:

      The final training session covers basic hydraulic troubleshooting techniques, fault analysis, common hydraulic system failures and preventative maintenance procedures which can be implemented to extent the life of almost any piece of hydraulic equipment.  Workbook to supplement your training. RB-M covers basic operating characteristics of Electrical control, Fluid power, Electronic control, Programming and mechanical fundamentals. RB-M is a great introduction for anyone desiring to learn about basic robotic systems.



HYDRAULICS & PNEUMATICS POSTERS



Laminated A3 Size

PERT Industrials Hydraulics Pneumatics Hydraulics Simulation Software


PERT Industrials Hydraulics Pneumatics Hydraulics Troubleshooting

INTERACTIVE PUMPS SOFTWARE



FEATURES

At the click of your mouse you can explore the workings of all types of pumps. This program goes all out with colourful animation techniques combining frame to frame hand drawing with advanced assemblies. Meticolous details of more that 70 types of pumps in full animation; complete with explanation and glossary from the experts in pumps.



CONTENTS





Where Pumps Are Used

Residential Applications

Industrial Applications

Agricultural Applications

Scientific & Medical Applications

Boating Applications



How Pumps Work

Some Basic Physics

Properties of Liquids

Viscosity

Pump Materials

Priming the Pump

Hydraulic Accumulators



Types of Pumps

Centrifugal Pumps

Rotary Pumps

Reciprocating Pumps



Force Pumps

Suction Pumps

Seals or No Seals?

Some Unique Pumps

Measuring Pump Performance

Flow Rate

Head

Suction Requirements

Maintenance Requirements

Starting Effort



The Right Pump for the Job

Big Jobs

Little Jobs

Submersible Pumps

Parallel Pumps

Serial Pumps

Sterile Pumps

Historical Background & Some Famous Pumps

Archimedes Screw & Snail

Ctesibian Pump

Tympanum Drum

The Dutch Pumps

Some Famous Pumps

Henry R. Worthington



Most Amazing Pump

(Your own heart)



End and Control Sections

Pump Quiz

Glossary



PNEUMATICS TECHNOLOGY TRAINER



Features:

This portable, industrial grade trainer is an exciting way to teach learners about pneumatics in an exciting way, as the excercises are related to everyday life situations. An anodised Aluminium face plate is used to ensure non rusting long life performance. Finger tight quick release couplings are used throughout and the experiments are quick and easy to perform. Complete with simulation program



1 Compressor

1 Regulator

1 Push button Valve

1 Flow Regulator

1 AND Valve

1 OR valve

5 Y Pieces

1 Single Acting Cylinder

2 Double Acting Cylinder

2 Pilot valves

1 Pipe Cutter

1 Length of Pneumatics     tubing

1 Manual



Educational Contents



Symbols

Introduction to Pneumatics

Gases

Compressibility and Expansion

Kinetic Theory of gases

Boyles' Law

Charles' Law

General Gas Law

Compressed Air

General Pneumatics Safety

Compressors

Valves

Cylinders

Activities:

Using your Trainer

Blowing up balloons

The One Way Cylinder

The Bus Door

The AND Valve

The OR Valve

The Double Acting Cylinder

The Flow Control Valve

The Pilot Valve

The limit Valve

Reciprocating Motion

Sequencing





SCALED HYDRAULICS TRAINER



Features:

This novel reduced scale hydraulics trainer manages to faithfully recreate all the characteristics of an industrial system. Small components,  coupled with a 12V DC hydraulics pump makes for an extremely safe student environment! Anodised aluminium face plate is used to ensure non rusting long life performance. Finger tight quick release couplings are used throughout and the experiments are quick and easy to perform. Complete with Simulation program



Specification





Pressure regulator

High pressure pump

Reservoir

Pressure gauge

Flow control valve

Double acting cylinder – small

Double acting cylinder – medium

Single Acting Cylinder

Directional control valve

Pipe cutter

Tubing

Manual





Educational Content





Hydraulics concepts

Force Multiplication
The Hydraulic Jack

Pressure and Flow

The pump

The reservoir

Actuators

Motors

Cylinders

Single Acting Cylinder

Double Acting Cylinder

Valves

Relief Valves

Directional Control Valves

Activities:

Getting to know the trainer



Pressure Gauges

The hydraulics circuit

Pascal’s Law

Flow Control

Size and Speed

Mechanical Advantage

Sequencing

Single Acting Cylinder





Requirements

230/250V AC



Order No H/1



Dimensions

800 x 500 x 300mm



MANUALS FOR SPECIAL REQUIREMENTS



Industrial Hydraulics

































Mobile Hydraulics Technology

This is an add on manual to supplement our basic Hydraulics trainers, covering the widest range of mobile hydraulic applications found around the world.








PERT Industrials Hydraulics Pneumatics Interactive Pumps Software

PERT Industrials Hydraulics Pneumatics Technology Trainer

PERT Industrials Hydraulics Pneumatics Scaled Hydraulics Trainer

PERT Industrials Hydraulics Pneumatics Industrial Hydraulics Manual
PERT Industrials Hydraulics Pneumatics Mobile Hydraulics Manual
PERT Industrials Hydraulics Pneumatics Manuals
